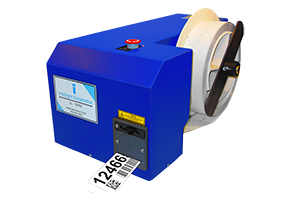

LabeLase® 30xx Metal Tag Printer

Fully automatic continuous-feed 30-Watt desktop laser printer for metal barcode tags.

The InfoSight LabeLase® 30XX Tag Printer is roughly three times faster than the LL1000 and still fits into the same small spaces. It is the ideal printer for more data on bigger tags or increased production.

The LabeLase® 30XX Tag Printer accepts standard 300-foot (90-meter) rolls of continuous tag stock, pre-nicked & notched for easy breakoff after printing.

The advanced electronics and all-new optics configuration are designed for maximum reliability, ultimate ease of maintenance, and a printing speed that meets your production requirements.







Features

  • 30 watt printer footprint available anywhere
  • Quiet operation
  • Unattended batch or single-on-demand tag printing
  • Optional rewinder available
  • Non-contact marking (no delicate pin matrix head)
  • High quality bar codes meet AIM specs. Common symbologies pre-programmed, additional and custom symbologies available upon request.
  • Unlimited number of text, bar code, and graphic fields per tag

Specifications

Physical dimensions

28" x 13" x 13" (71 x 33 x 33 cm)                                                            With snorkel - 18"W (46 cm)

Weight Less than 70 lbs. (32kg) without tag stock
Power requirements 100-240 VAC, 50/60 Hz, 4.5 A (Varies per model)
Tag Feed Continuous roll or single tag
Data Input Manual or Network
Marking method Pulsed CO2 laser beam, class 1 laser safety rating
Maximum barcode length 24 inches (610 mm)
Tag Widths 3 inches (76mm)
Tag Lengths 0.375 - 24 inches (9.5 - 610mm)
Barcodes per tag Unlimited, within available space
Barcode Symbologies All common 1D and 2D codes including: Code 128, Code 39, Interleaved 2 of 5, UPC, UID, GS1, DataMatrix, and QR Codes
Marking Method Pulsed CO2 laser beam, Class 1 laser safety rating
Laser life 15,000 operating hours typical (approx. 5 million tag-inches)
Marking speed Varies by tag-type & data layout. Typical: 1-4 sec/tag-inch
Tag Composition InfoSight Metal Tags with laser-markable coatings
Communications Interface PC to Printer: RS232C serial, USB, & Ethernet                                          Host to PC: InfoSight Extended Protocol, File Transfer, and Ethernet
Tag layout software LabeLase® Producer™ for Windows
Communications Interface RS232C serial, USB & Ethernet

 INVISIBLE LASER RADIATION AVOID EYE OR SKIN EXPOSURE TO DIRECT OR SCATTERED RADIATION CLASS 1 LASER PRODUCT, USING A CLASS 4 EMBEDDED LASER (400 W, 10.57 - 10.63 µm)

The following are available for download:

Technical specifications are subject to change without notice.
